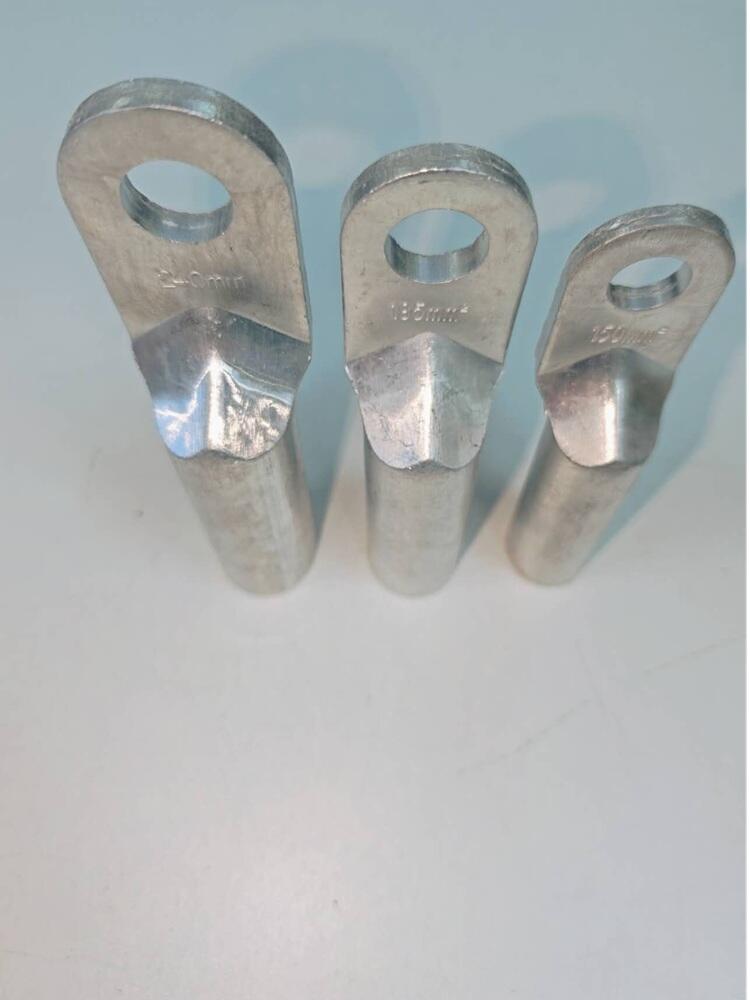

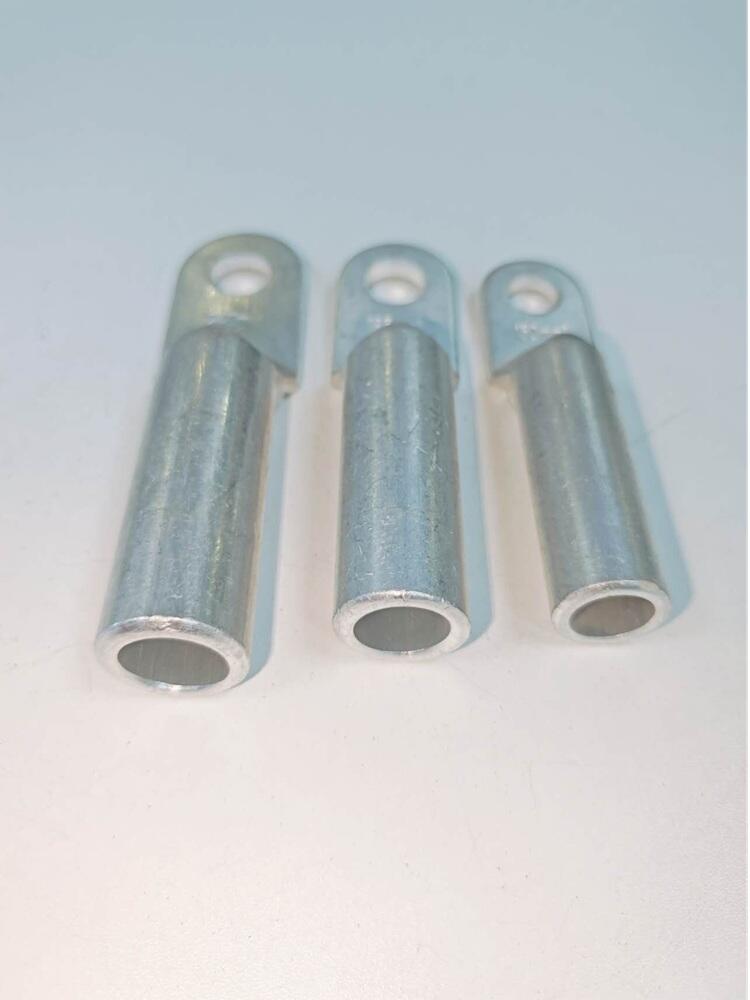

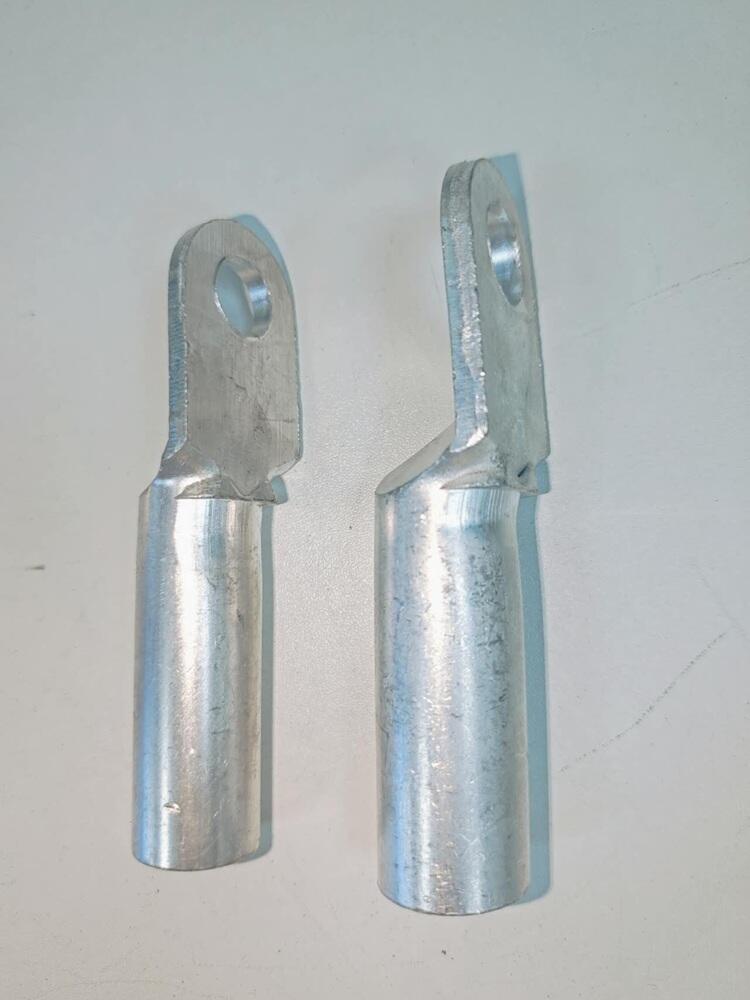

aluminium lugs( Aluminum terminal, Aluminum wiring nose, Aluminum cable terminals, Aluminum conductor terminal, Aluminum crimp terminals ,Aluminum terminal end)

Product Features

1. Strong anti-corrosion ability
The shell is usually made of aluminum alloy, and some products are treated with tin plating and other surface treatments, which have strong oxidation resistance and corrosion resistance, and can be used in harsh environments for a long time without damage.
2. Convenient installation
Generally, the installation can be completed only by inserting the aluminum wire into the hollow part of the terminal, and then using the matching terminal pliers and other tools for pressing operation.
The process is simple and fast, without complex tools and skills.
3. Various specifications
It can be divided into various specifications according to the cross-sectional area of the adapter wire, ranging from the model with a smaller cross-sectional area suitable for low-power circuits to the model with a larger cross-sectional area suitable for high-voltage distribution and other high-current scenarios, which can meet different electrical connection needs.

Product Advantages

1. Good conductivity
Aluminum itself has good conductivity, although its conductivity is lower than copper, but the aluminum terminal can meet certain current transmission requirements through reasonable design and process, such as the use of high-quality aluminum, optimized structure, etc., with a large load.
2. Reliable connection
The connection with the main cable is usually in the way of line pressing, which does not damage the conductor, can form a large enough extrusion on the conductor, has reliable contact, strong anti-loose and anti-seismic functions, and can effectively avoid the problem of loose connection caused by vibration and other reasons.

Functional Features

1. Power distribution system
Such as the connection of aluminum cables with switches and instruments in distribution boxes and cabinets.
2. Building electricity
terminal connection of aluminum conductors such as wall sockets and lamps in residential and commercial buildings.
3. Industrial equipment
Aluminum wire power supply or signal access of motors, frequency converters, control cabinets and other industrial equipment.
4. Electrical field of low voltage
Such as the connection and branching of aluminum conductors in junction boxes and terminal blocks.

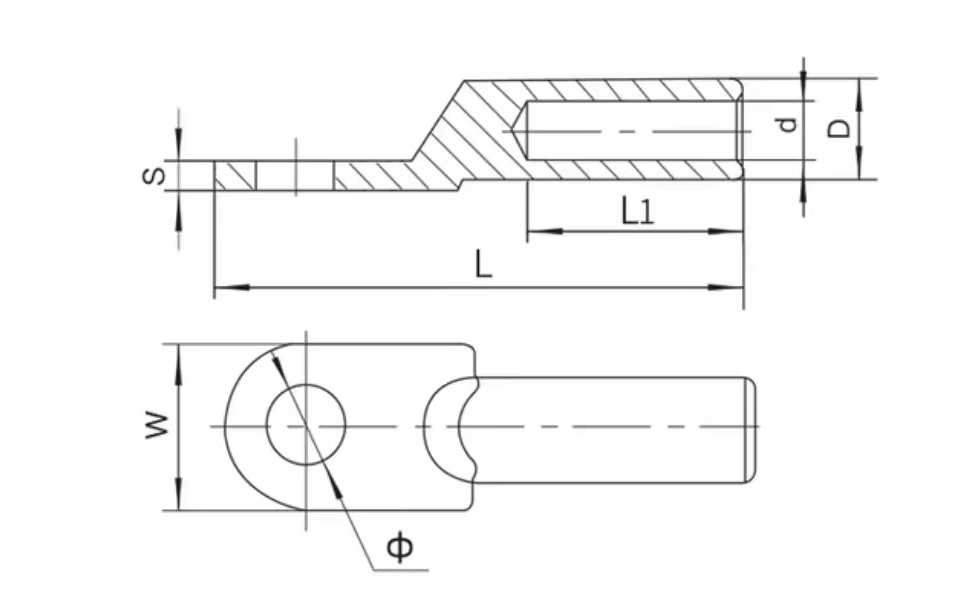

Specifications

Model	SIZE(mm)							Packing
Model	Hole diameter	D	d	S	W	L1	L	Packing
DL-16	8.5	10	7	2.5	14.5	33	67.5	20
DL-25	8.5	11	8	3	16	34.5	71	20
DL-35	10.5	12	9	3	18	33.5	74	20
DL-50	10.5	14	10	3.2	19	38.4	81	10
DL-70	12.5	16	12	4.0	22	43	90	10
DL-95	12.5	18	13.5	4.1	25	47	99	10
DL-120	12.5	20	16	4.5	28	46	105	10
DL-150	14.5	22	17	5.0	29	50	110	10
DL-185	16.5	24	18.5	5.1	32	54	117	10
DL-240	17	26	21	5.5	36	57	126.5	10
DL-300	18	30	24	6.9	44	66	151	5
All measurements provided are manually obtained and may contain slight tolerances. Final dimensions shall be subject to the physical product
