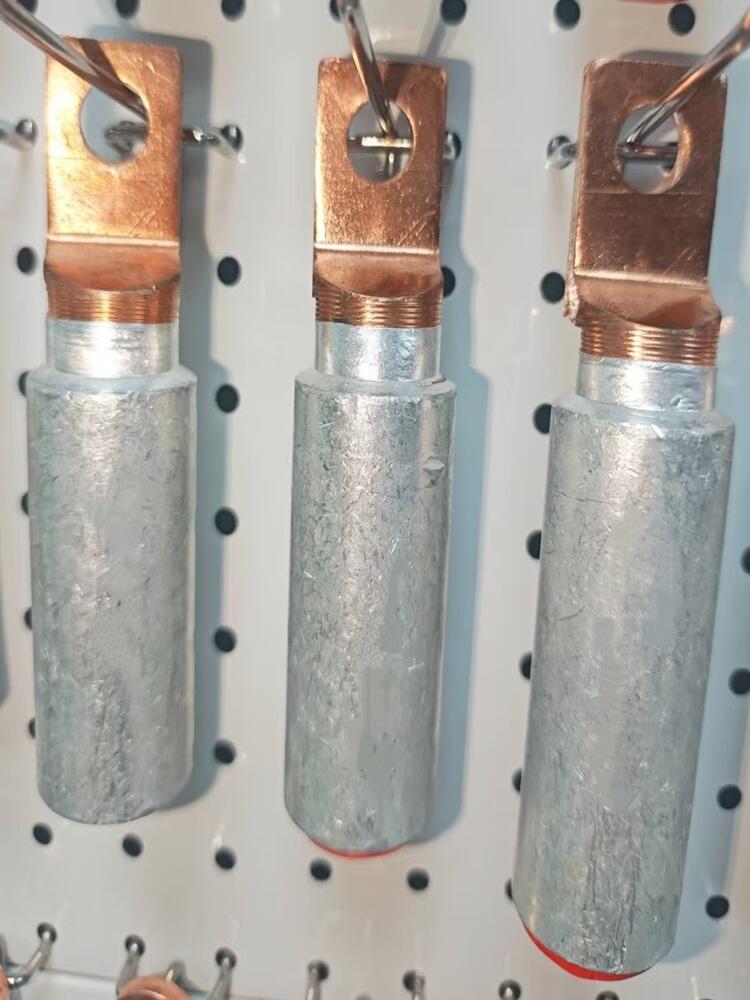

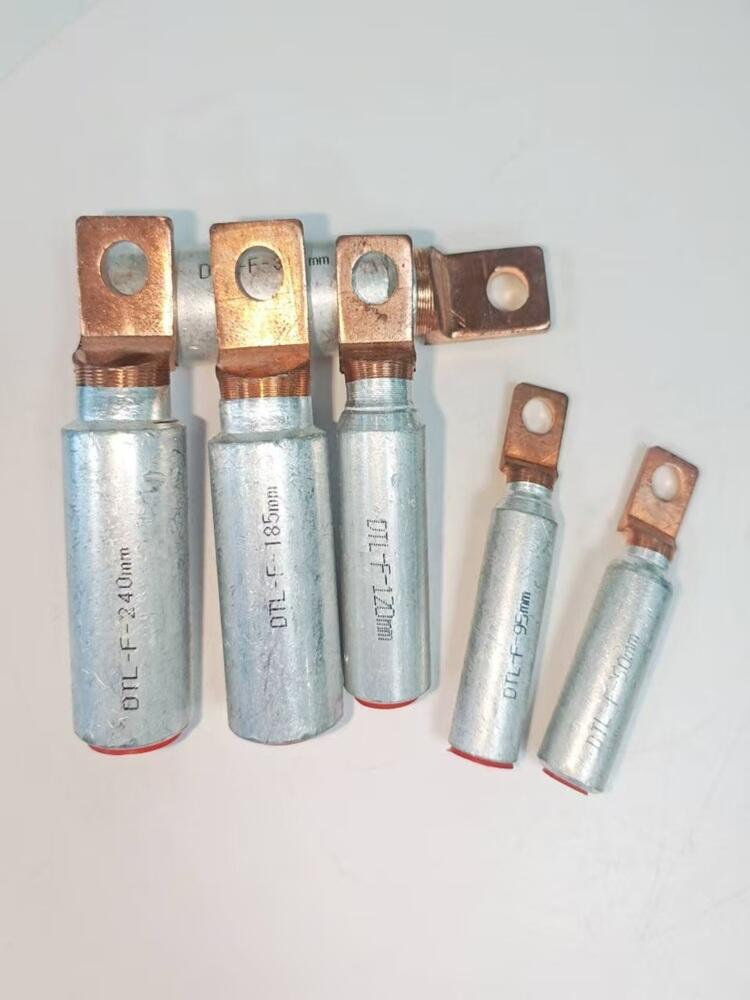

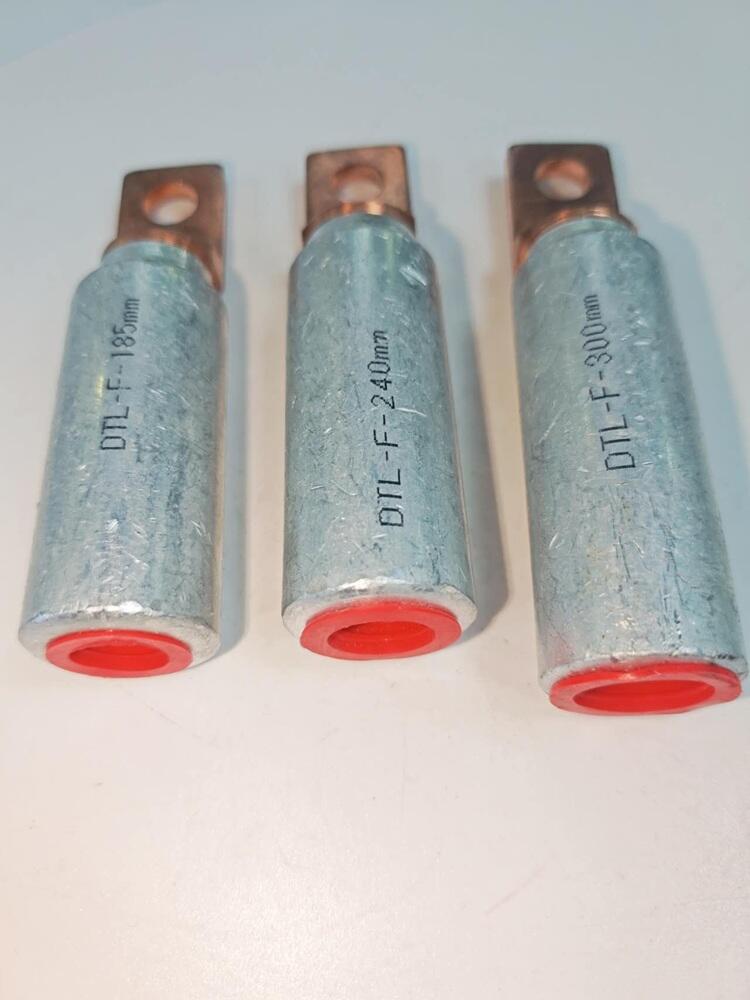

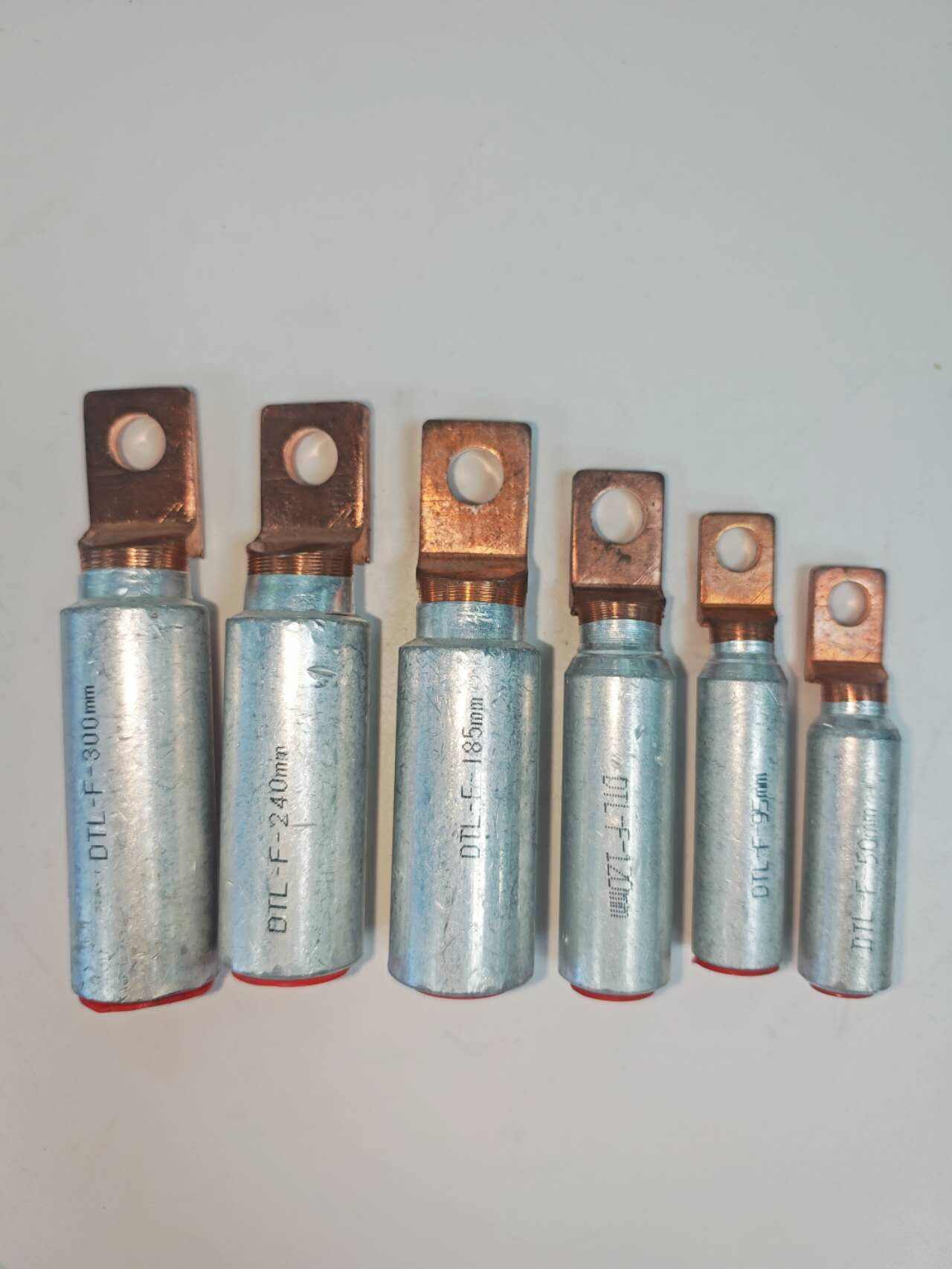

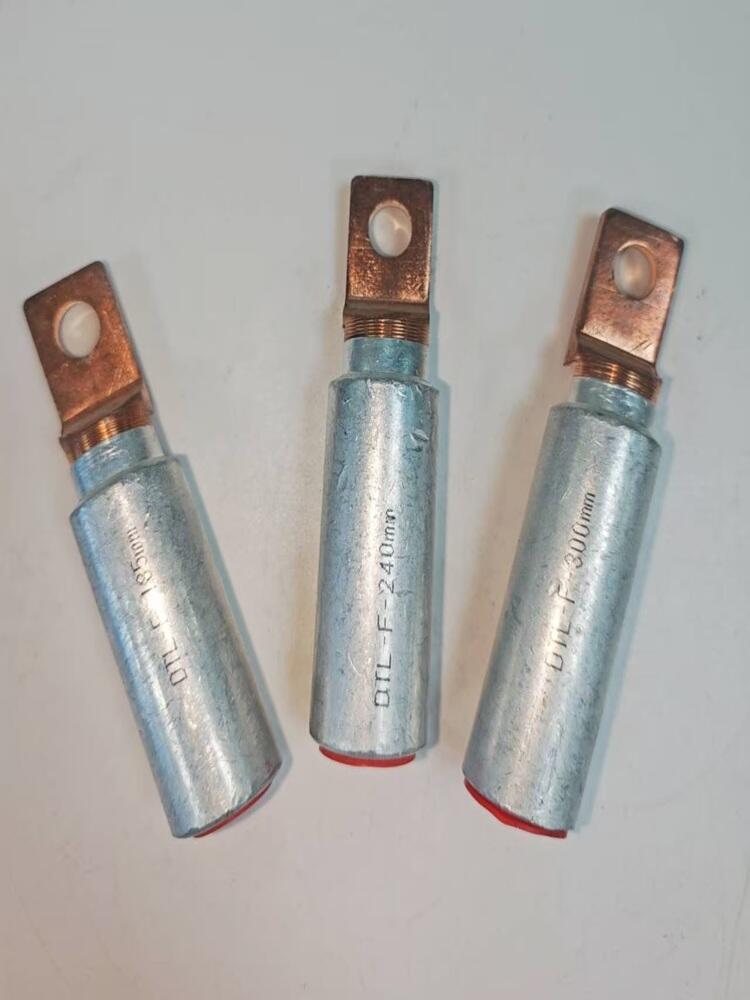

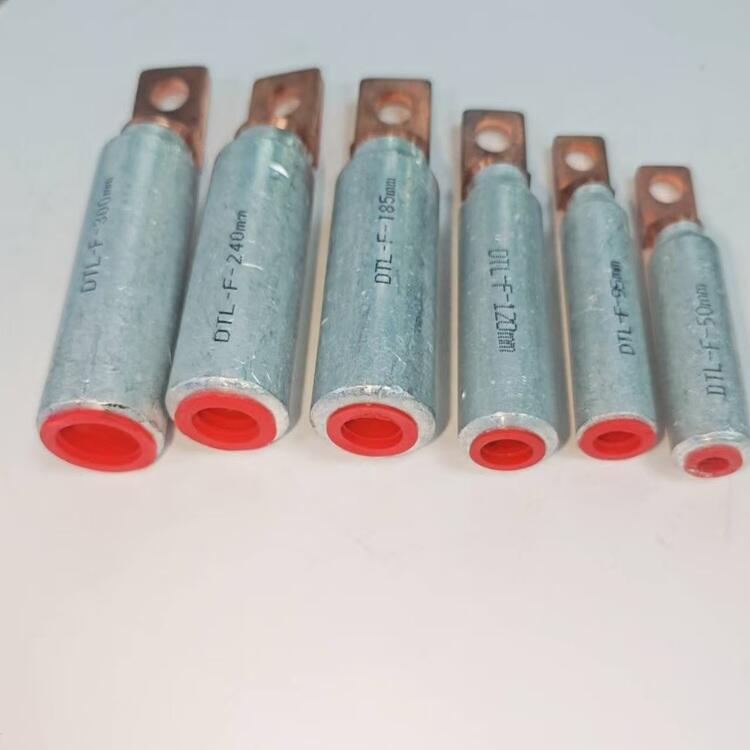

Cu-Al Terminal Blocks(DTL Square-Head Cable Lugs,Wire Lugs, Circuit Breaker Connecting Plates）

DTL-001-3

Product Features

1. High-quality materials

Made of high-quality copper and aluminum, it ensures excellent electrical conductivity and corrosion resistance, meeting the strict requirements of relevant international electrical standards for materials.

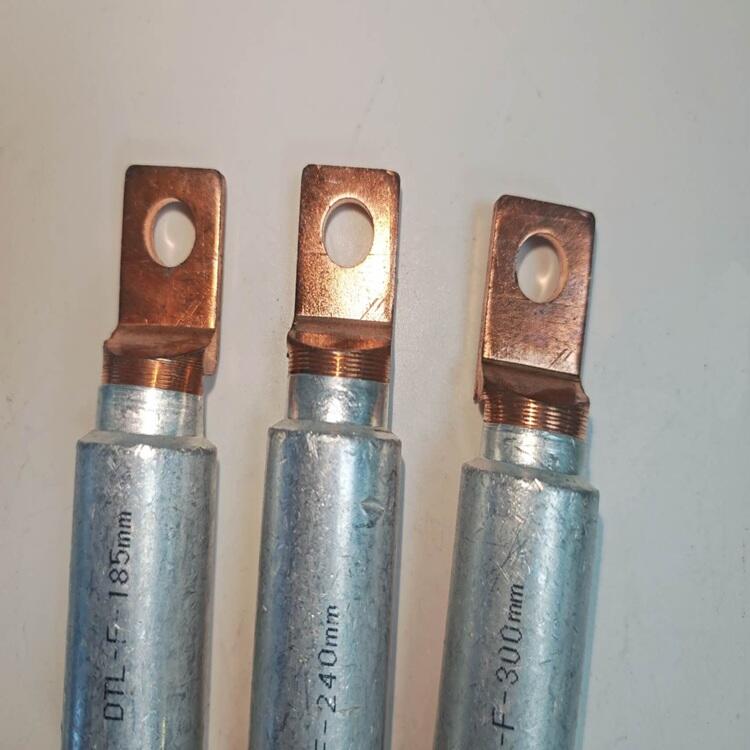

2. Square head structure

It has a square head shape. This design is conducive to close arrangement and neat installation in a narrow space, effectively utilizing space and making the wiring more regular.

3. Exquisite craftsmanship

Advanced manufacturing techniques, such as special crimping or welding processes, are adopted to ensure a firm and reliable connection between copper and aluminum, capable of withstanding significant tensile forces and currents.

Product Advantages

1. High space utilization

The square head design facilitates dense installation. In cases where the internal space of electrical equipment is limited, it can achieve a reasonable layout of more terminals, enhancing the compactness and integration of the equipment.

2. Stable connection

The square head shape provides a larger contact area and better force uniformity during installation, making the connection between the terminal and the wire or equipment more stable and reducing the risk of loosening caused by factors such as vibration and thermal expansion and contraction.

3. Comply with international standards

Strictly produced in accordance with international standards, the size specifications, electrical performance, etc. are all compatible with the internationally common electrical systems, making it convenient for use in electrical projects in different regions around the world.

Functional Features

1. Dissimilar wire connection

Mainly used to connect copper wires and aluminum wires, achieving reliable electrical conduction between two wires of different materials, and ensuring the stability and efficiency of power transmission.

2. Applicable to various electrical equipment

It can be widely used in all kinds of export-oriented electrical equipment, such as transformers, distribution cabinets, distribution boxes, etc., meeting the reliability and safety requirements of electrical connections for different equipment.

3. Convenient for standardized installation

The regular shape of the square head facilitates standardized installation operations. Whether it is manual installation or installation with automated equipment, it can improve installation efficiency and quality, which is conducive to large-scale production and project implementation.

Specifications

Model	Threaded hole	Plate width	Plate thickness	Pipe depth	Inner diameter of pipe	Outside diameter	Total length
DTL-F-10	8	14	4	42	4.8	16	85
DTL-F-16	8	14	4	43	5.5	16	87
DTL-F-F5	8	14	4	43	7	16	87
DTL-F-35	10	14	4	43	8.5	16	87
DTL-F-50	10	17	5	50	10	20	100
DTL-F-70	10	17	5	50	11.5	20	100
DTL-F-95	12	17	5	50	13.5	20	100
DTL-F-1F0	12	21	6.2	63	15	25	120
DTL-F-150	12	21	6.2	63	16.5	25	120
DTL-F-185	12	25	7.2	60	18.5	32	122
DTL-F-F40	12	25	7.2	60	20	32	122
DTL-F-300	12	30	8	65	23.5	34	145
DTL-F-400	12	32	8	70	26	40	150
DTL-F-500	12	32	8	70	30	40	150
All measurements provided are manually obtained and may contain slight tolerances. Final dimensions shall be subject to the physical product. All size unit are mm.
