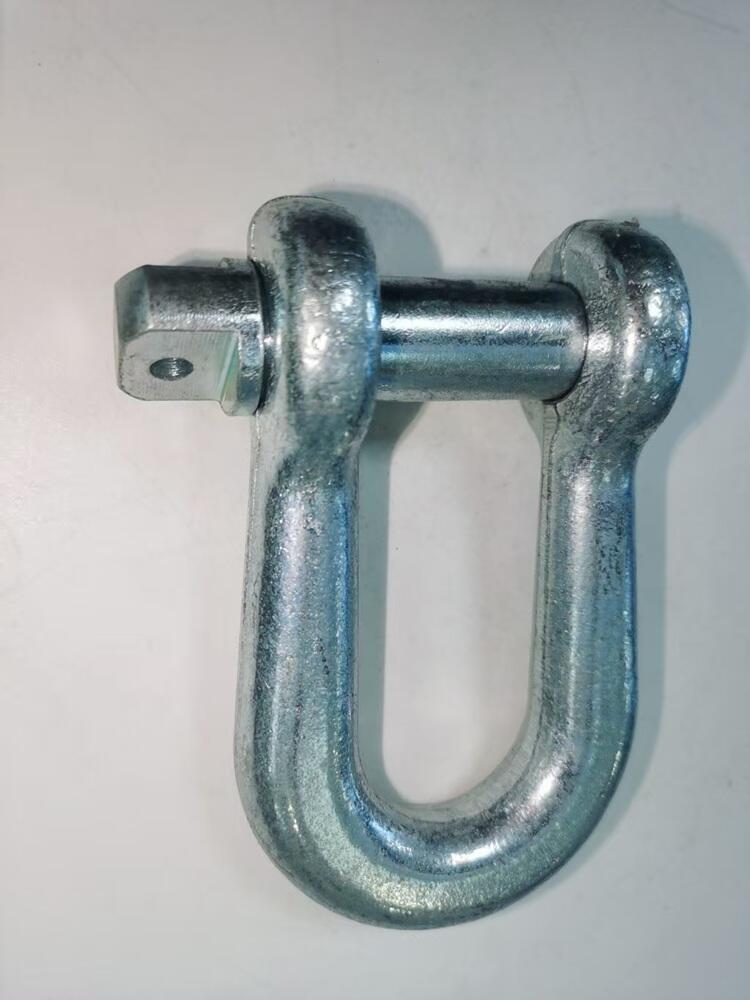

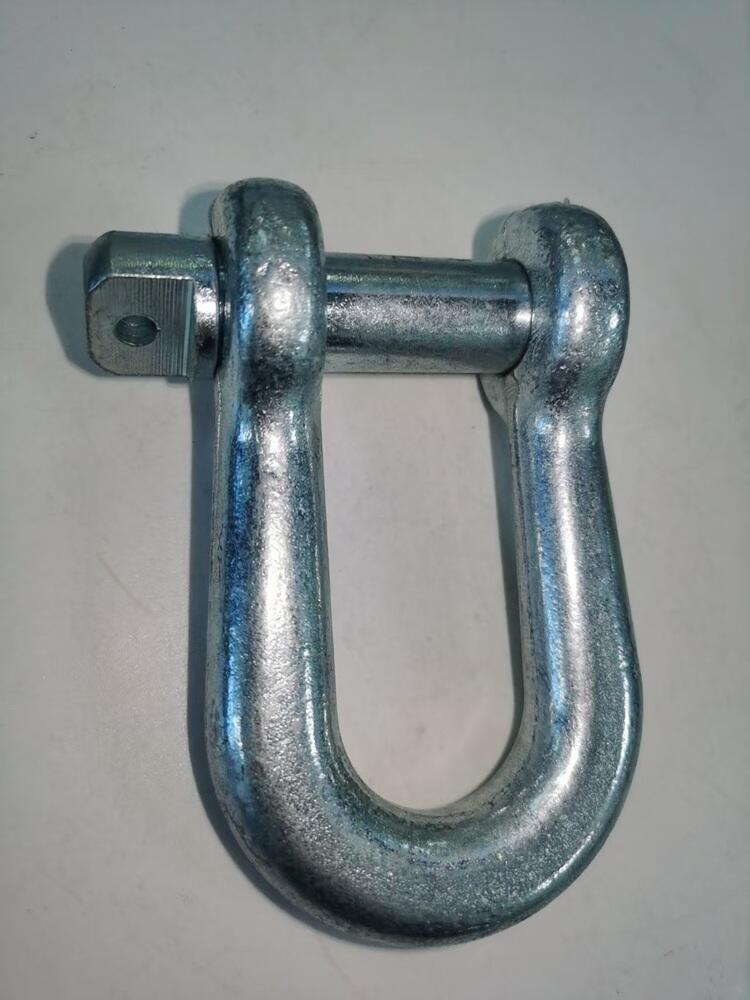

D-shackle（Galvanized D- shackle，Horseshoe shackle，D-rings，Lifting shackle）

Product Features

1.Compact and light structure

D-type shackle is simple shape, compact in overall structure, small size.light weight.
Compared with other connectors complex structures,It is more convenient in handling and installation, Convenient to use in various space environments, Can effectively improve work efficiency

2. Simple operation

The connection is realized through the cooperation of the bolt pin and buckle body. During installation, the bolt pin is inserted into the buckle body hole,The nut is tightened and the anti-drop device is installed. The disassembly process is relatively simple, Without complex tools and special skills. The connection or disassembly operation can be completed quickly, Saving time.

3. Various specifications models

D-type shackle bolts have various specifications.
From smaller models for light duty, To larger models suitable for heavy lifting tasks, Different specifications correspond to different rated loads, Which can meet the connection and lifting needs of different weight objects in construction, Power, Shipping and other industries.

Product Advantages

1.Strong environmental adaptability

The surface is usually Hot-dip galvanized and other anti-corrosion treatment, with good corrosion resistance, can be used in hurnid, corrosive gas and other harsh environments, not easy to rust and damage,Can maintain stable performance for a long time, prolong service life.The connection is firm&safe

2.Secure and stable connection

The bolt pin is closely fitted with the buckle body, The clearance is usually small. It is equipped with cotter pins and anti-drop devices, which can effectively prevent the bolt pin from unhooking during operation, ensure the firm connection, maintain reliable connection under dynamic load, reduce safety risks.

Functional Features

1.Power industry

In the construction, maintenance and overhaul of power facilities, it can be used for hoisting equipment such as transformers . electric towers. It can also realize the connection between insulators and pole towers, wire clamps and conductors, etc., playing a role in transmitting tension and ensuring connection safety.

2.Construction engineering

It can be used to connect hoisting slings, lifting equipment &igging systems. In operations such as hoisting construction materials and installing high-rise curtain walls, it connects steel wire ropes or slings with the objects to be hoisted, facilitating the lifting and moving of heavy objects.

3.Mining operations

In mines, it is used for lifting and transporting heavy objects such as ores and equipment. It connects mining steel wire ropes with mine cars, hoisting containers, etc., and can bear large tension, ensuring the safety and reliability of mine material transportation and equipment hoisting.

Specifications

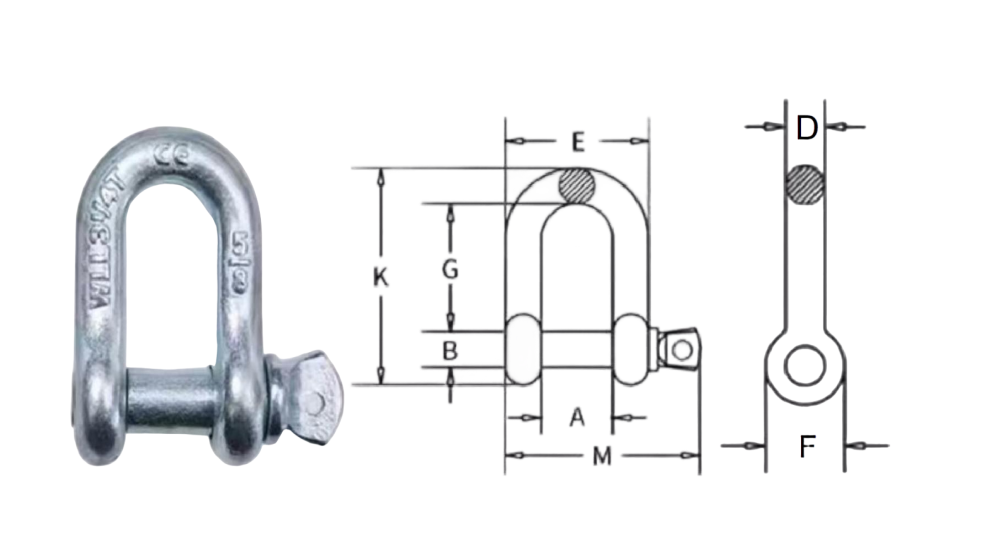

SIZE MM
IN	MM	T	KG	A	B	D	E	F	G	K	M
1/4	6	0.50	0.05	12.0	7.9	6.4	23.9	15.5	22.4	40.4	35.1
5/16	8	0.75	0.08	13.5	9.7	7.9	29.5	19.1	26.2	48.5	42.2
3/8	10	1.00	0.13	16.8	11.2	9.7	35.8	23.1	31.8	58.4	51.6
7/16	11	1.50	0.20	19.1	12.7	11.2	41.4	26.9	36.6	67.6	60.5
1/2	13	2.00	0.27	20.6	16.0	12.7	45.0	30.2	41.4	77.0	68.3
5/8	16	3.25	0.57	27.0	19.0	16.0	58.7	38.1	50.8	95.3	84.8
3/4	19	4.75	1.19	31.8	22.4	19.1	69.9	46.0	60.5	115.1	100.8
7/8	22	6.50	1.43	36.6	25.4	22.4	81.0	53.1	71.4	135.4	114.3
1	25	8.50	2.15	43.0	28.7	25.4	93.7	60.5	81.0	150.9	128.8
1-1/8	29	9.50	3.06	46.0	31.8	28.7	103.1	68.3	90.9	172.2	142.0
1-1/4	32	12.00	4.11	51.6	35.1	31.8	115.1	76.2	100.1	190.5	156.5
1-3/8	35	13.50	5.28	57.2	38.1	35.1	127.0	94.1	111.3	210.3	173.7
1-1/2	38	17.00	7.23	60.5	41.4	38.1	136.6	91.9	122.2	230.1	186.7
1-3/4	45	25.00	12.13	73.2	50.8	41.4	162.1	106.4	146.1	278.6	230.6
2	51	35.00	19.19	82.5	57.2	50.8	184.0	122.2	171.5	311.9	262.6
2-1/2	63	55.00	32.55	105.0	69.9	66.5	238.3	144.5	203.2	376.2	330.2
All measurements provided are manually obtained and may contain slight tolerances. Final dimensions shall be subject to the physical product.
