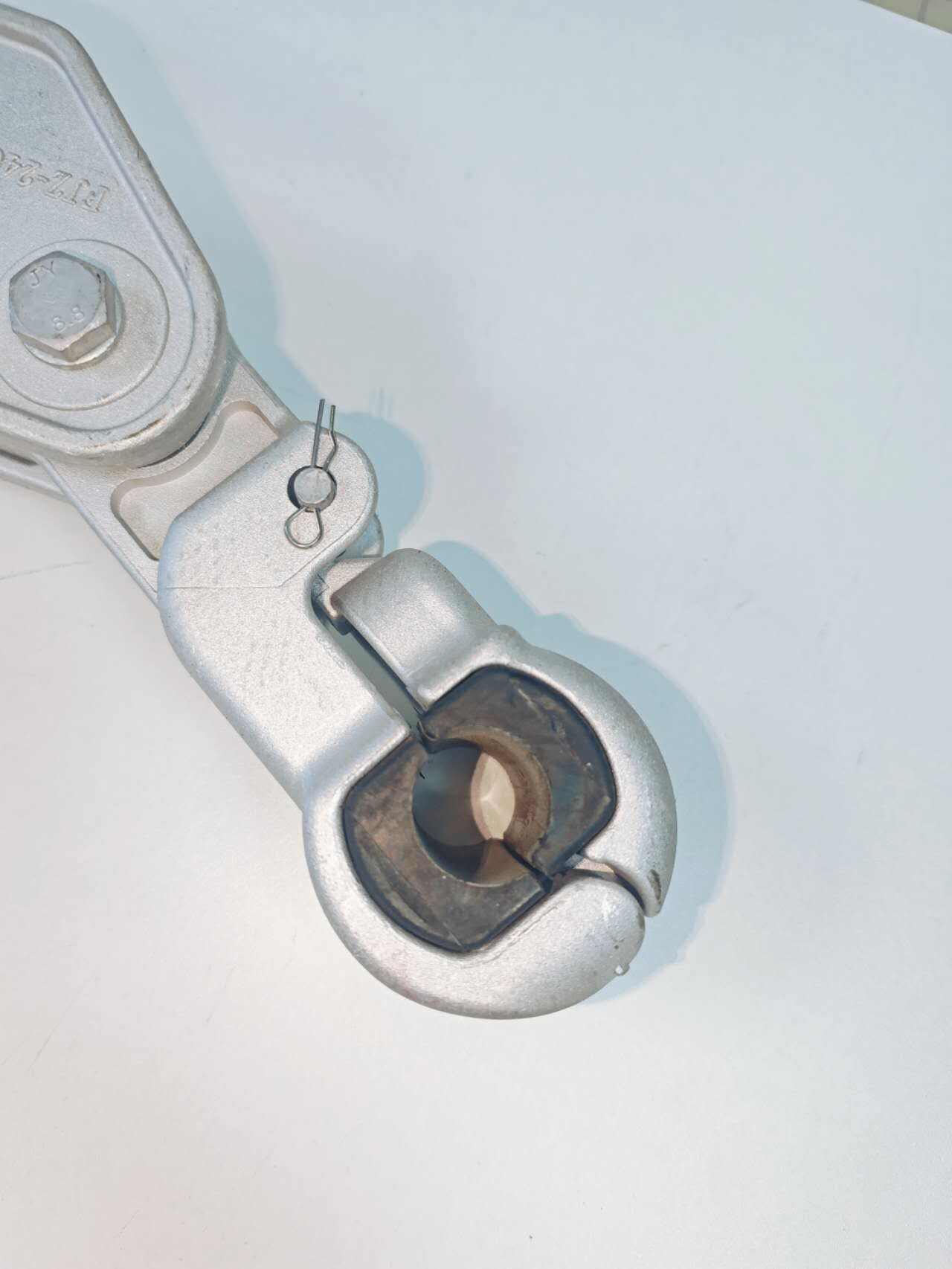

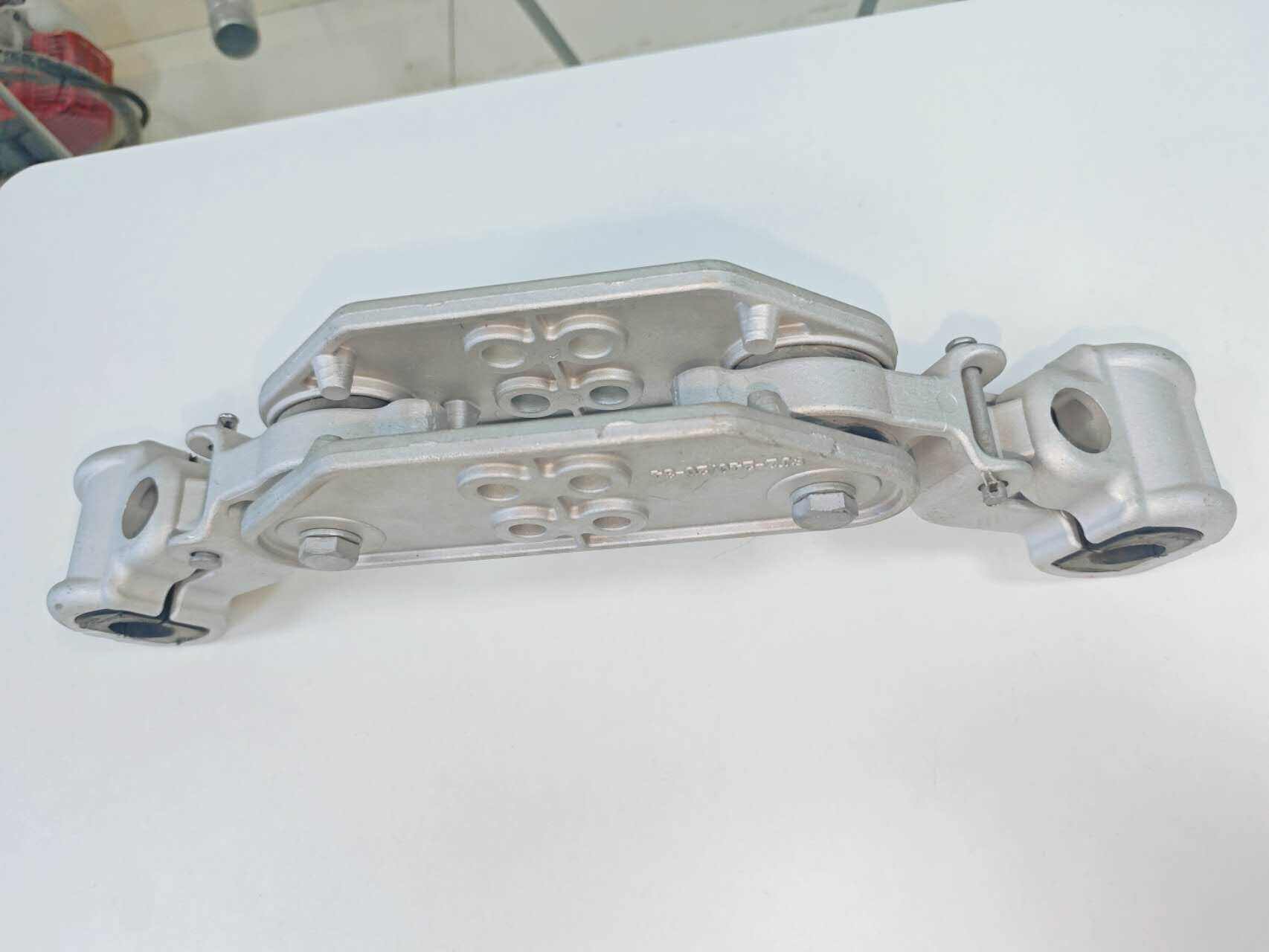

Spacer(FJZ240-30/34 Double Bundle Damper, Spacer Dampe,Supporting Protective Conductor, Fittings)

FJZ-001-1

Product Features

1. Subconductor Spacing Maintenance

Maintains fixed spacing between twin conductors under: Wind loads Ice accretion

Galloping oscillations

Short-circuit current forces

Prevents conductor clashing and interphase flashovers .

2. Vibration Damping Performance

Suppresses:

Aeolian vibration

Subspan oscillation

Extends conductor service life by reducing fatigue damage

Meets damping requirements

3. Advanced Material Properties

Aluminum alloy construction

Lightweight

High strength

Corrosion-resistant

Optional composite material versions for:

Enhanced UV resistance

Reduced corona noise

Product Advantages

1.Improve line safety

By preventing collisions and excessive vibration between conductors, the probability of line faults is reduced, ensuring the safe and stable operation of power lines.

2.Extend conductor lifespan

Reducing conductor vibration and wear helps prolong the service life of conductors and lower line maintenance costs.

3.Easy installation

Some FJZ double-split spacers adopt installation methods such as preformed strands, featuring simple operation, large contact area, uniform adhesion distribution, high grip strength, and resistance to slippage.

Functional Features

It is mainly used for double-split conductor lines of 220kV and 330kV to ensure that the spacing between split conductor bundles remains unchanged, so as to meet the requirements of electrical performance and reduce the surface potential gradient. Meanwhile, in case of short circuits, it can prevent the attraction and collision between conductor bundles due to electromagnetic force, Ensuring the normal operation of power lines.

Specifications

FJZ Double-Split damping spacer
Model	Suitable Conductor Sizes (MM)	Wire Clip Groove （R）	Wire Spacing (MM)	Weight （KG）
FJZ-240/19	LGJ-300/20~50	9.6	400	3.6
FJZ-240/21	LGJ-300/70	10.6	400	3.6
FJZ-240/23	LGJ-400/20~35	11.4	400	3.6
FJZ-240/24	LGJ-400/50	12	400	3.6
FJZ-240/25	LGJ-400/90	12.6	400	3.6
FJZ-245/19	LGJ-300/20~50	9.6	450	3.96
FJZ-245/21	LGJ-300/70	10.6	450	3.96
FJZ-245/23	LGJ-400/20~35	11.4	450	3.96
FJZ-245/24	LGJ-400/50	12	450	3.96
FJZ-245/25	LGJ-400/90	12.6	450	3.96
FJZ-250/30	LGJ-500/35~65	13.5	500	4.5
FJZ-250/34	LGJ-600/45	15.2	500	4.5
FJZ-250/36	LGJ-720/50	17.8	500	4.5
All measurements provided are manually obtained and may contain slight tolerances. Final dimensions shall be subject to the physical product.
