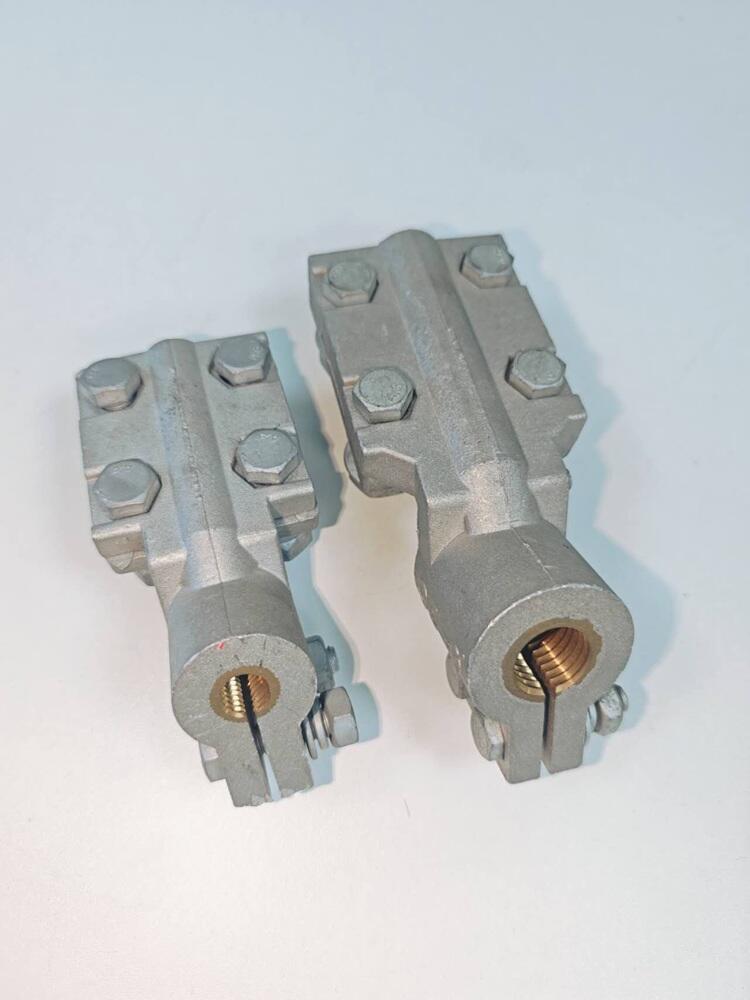

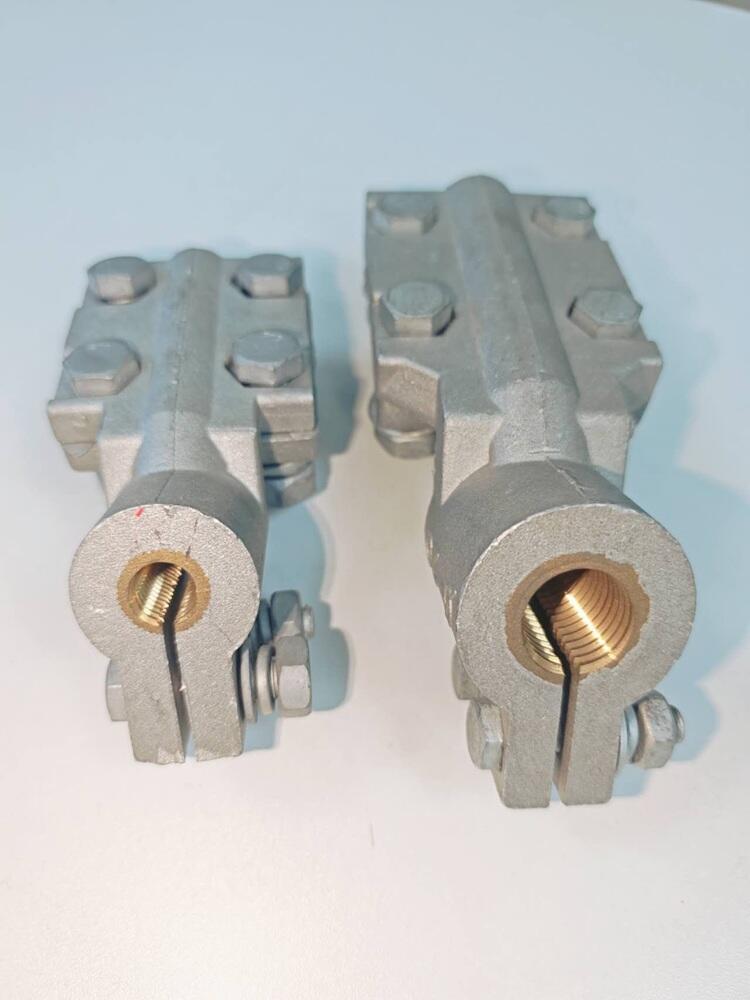

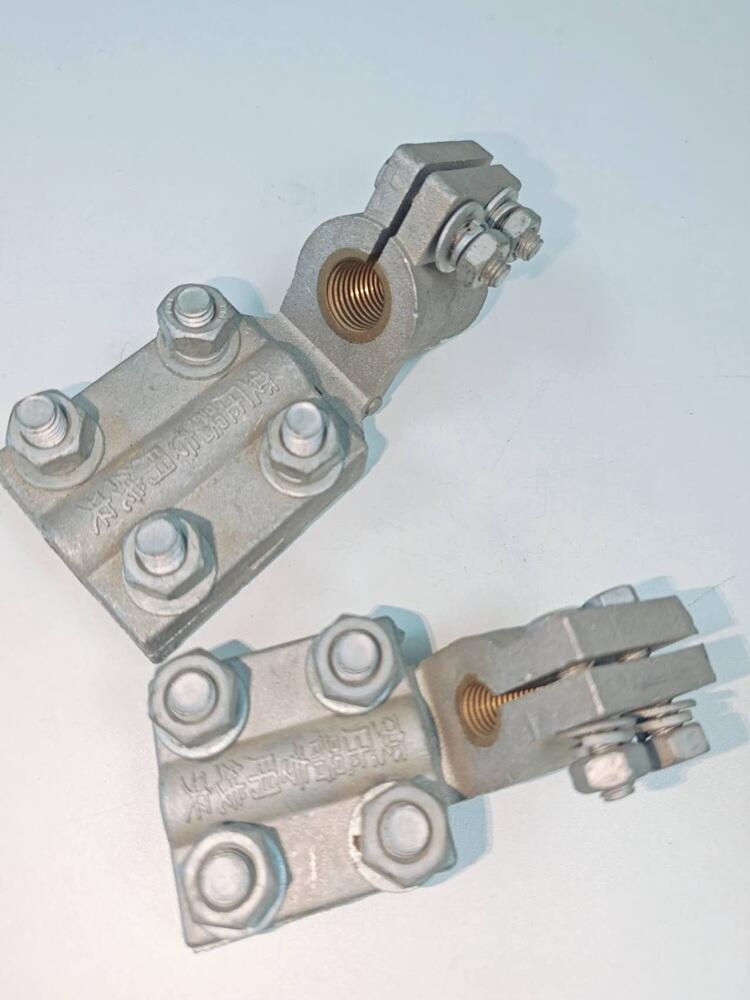

Transformer Clamp(Terminal connector,Buddha's Hand-shaped Pole Equipment Clamp,Connection Clamp,Terminal Sheath,Cu-Al Fittings)

SBG-001-1

1. Specialized Material Composition

Manufactured with innovative copper-aluminum composite material

Combines the superior conductivity of copper with the cost-effectiveness of aluminum

Optimized for both electrical performance and economic value

2. Advanced Manufacturing Process

Precision stamping enables single-step forming

Eliminates need for secondary machining operations

Ensures high production efficiency and consistent product quality

3. Engineered Structural Design

Semi-circular conductor contact surface provides maximum contact area

Integrated component design prevents part loss during installation

Self-aligning feature ensures proper conductor positioning

1. Corrosion & Oxidation Resistance

The specialized copper-aluminum composite material and advanced manufacturing process provide exceptional corrosion and oxidation resistance

Ensures long-term reliable performance in various outdoor environments

Withstands harsh conditions including humidity, salt spray, and industrial pollution

2. Superior Electrical Performance

Ultra-low contact resistance minimizes power loss and heat generation

Ensures stable and reliable electrical connections

Maintains consistent performance for efficient and safe power transmission

3. Quick & Easy Installation

Simplified installation process: simply place the bare conductor in the semi-circular groove and tighten the bolt

Self-centering design automatically aligns the conductor for optimal positioning

Integrated component design prevents part loss during installation

Reduces installation time by up to 50% compared to conventional clamps.

1. Electrical Connection

Primarily used for connecting substation busbar downleads to electrical equipment terminals (transformers, circuit breakers, etc.)

Ensures reliable electrical connection between copper and aluminum conductors

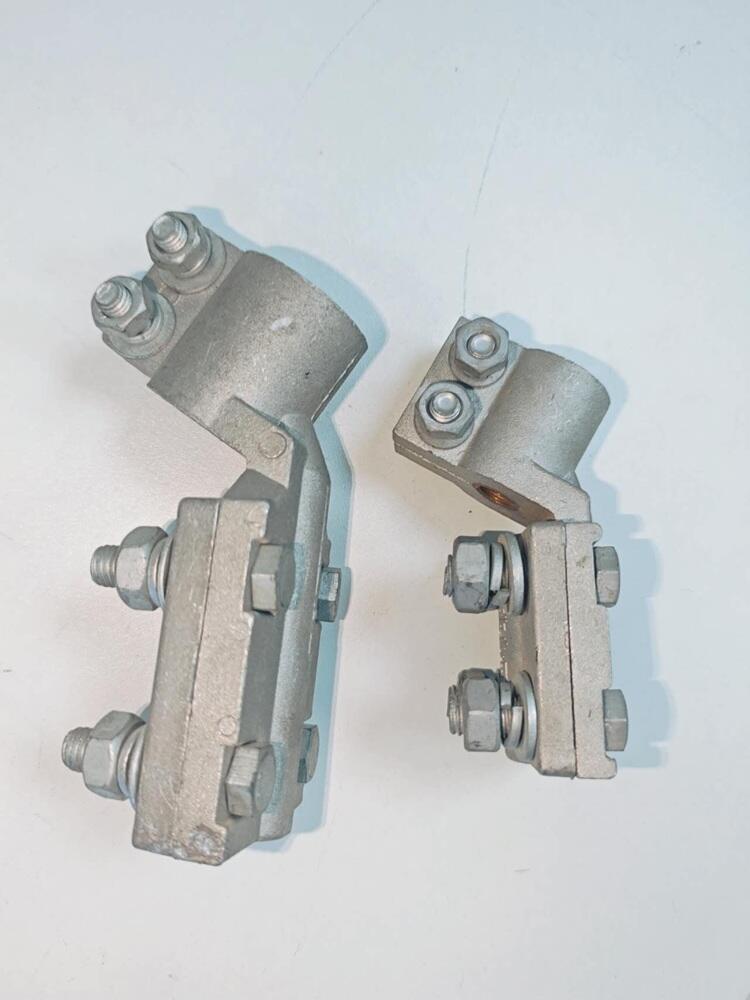

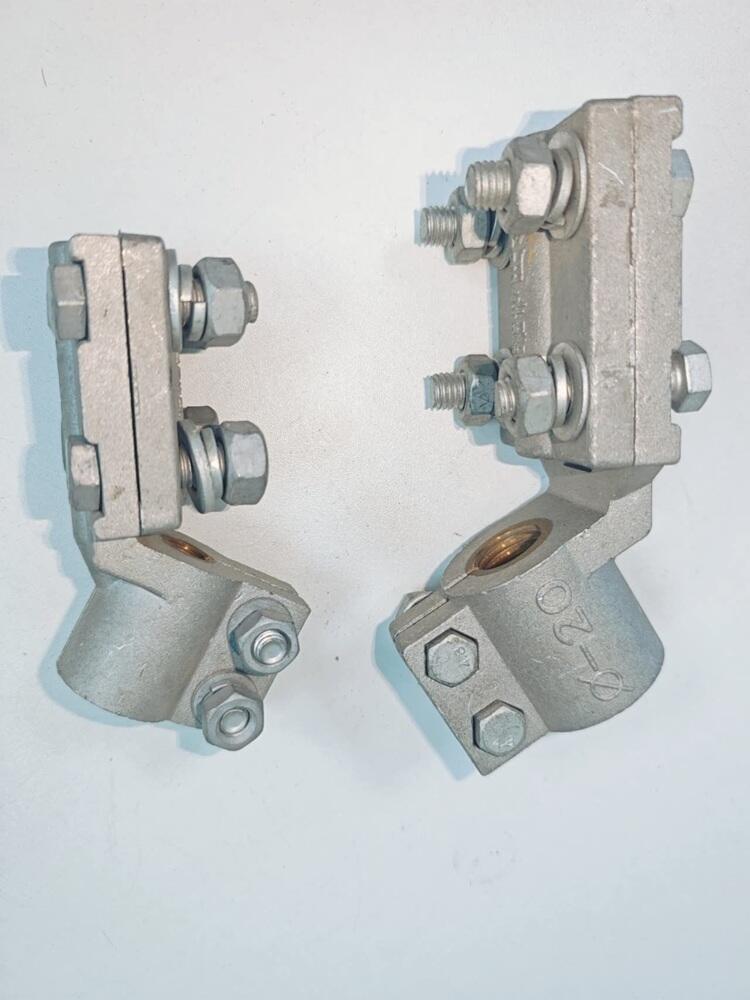

2. Angle Adaptability

Available in multiple configurations (0°, 30°, etc.) to accommodate different angles between downleads and equipment terminals

Provides flexible installation solutions for various scenarios

3. Mechanical Fixation

Withstands mechanical stresses to securely fasten conductors to electrical equipment

Maintains stable and durable line connections

Product name:SBG Copper - Aluminum Transformer Clamp Material: Copper - Aluminum
Model	suitable conducting rod	Total L	Length	Width	Plate thickness
SBG-M12	M12	120	58	55	9
SBG-M14	M14	120	58	55	9
SBG-M16	M16	135	67	55	9.5
SBG-MI8	M18	135	67	55	9.5
SBG-M20	M20	150	75	60	10
SBG-M22	M22	150	75	60	10
All measurements provided are manually obtained and may contain slight tolerances. Final dimensions shall be subject to the physical product
