1. Diverse Materials
Available in materials such as steel and aluminum.
2. Compact Structure
Featuring a wide reinforcing plate for secure line fixation, it can stably suspend insulated conductors on overhead power lines.
3. Excellent Insulation Performance
Suitable for insulated conductors, it has good inherent insulation properties to ensure electrical isolation between the conductor and towers/poles. Multiple material options are available to meet different application requirements.
1. Convenient Installation
Easy and quick to install, which can improve construction efficiency and reduce labor intensity.
2. Wide Application Range
Suitable for suspending insulated aluminum conductors in 20kV and below overhead power line systems, and can adapt to various specifications of insulated conductors.
3. Reliable Performance
Made of strong materials and with a reasonable structural design, it can bear the vertical load of the conductor. This ensures that the clamp will not slide or detach from the insulator string during normal operation or when subjected to certain external forces, guaranteeing the safe and stable operation of the line.
1. Conductor Suspension
Primarily used in overhead power lines to suspend insulated conductors on the insulator strings of straight-line poles, keeping the conductors in a suspended state within the span.
2. Load Bearing
It bears the installation load of the conductor within the vertical span and the vertical load during operation, while allowing the conductor to swing within a certain range. This ensures the stability of the conductor and prevents damage to the line caused by loads, swinging, and other factors.
| Category | Model | Applicablewire models㎡ | |

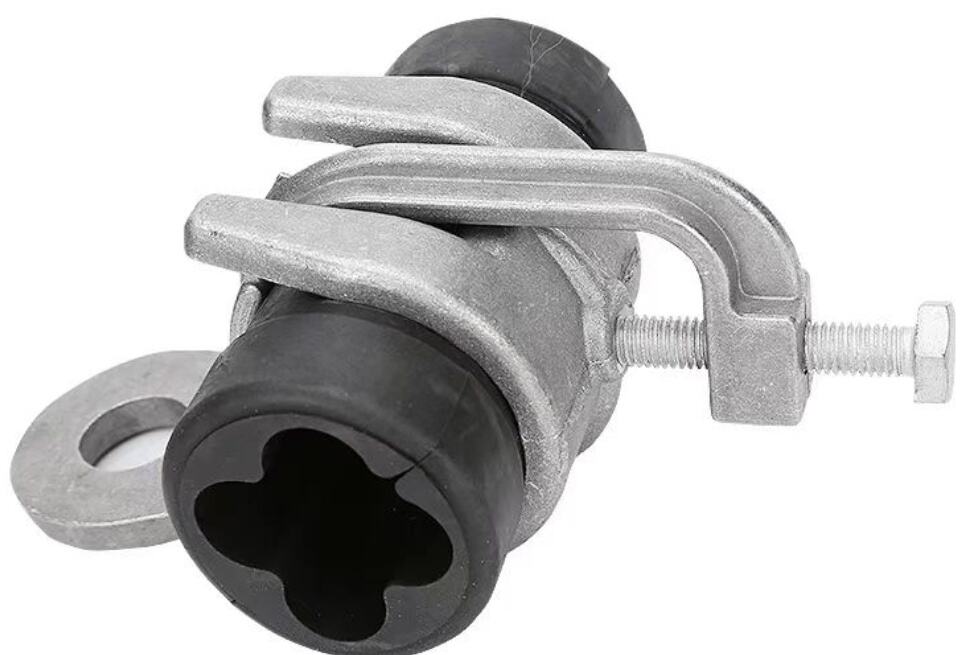

| Hinge - type BundleSuspension Clamp withan insulating sleeve | XJG-1 | 16-25x4 | |
| XJG-2 | 35-50x4 | ||
| XJG-3 | 70-120x4 | ||
| All measurements provided are manually obtained and may contain slight tolerances. Final dimensions shall be subject to the physical product | |||
