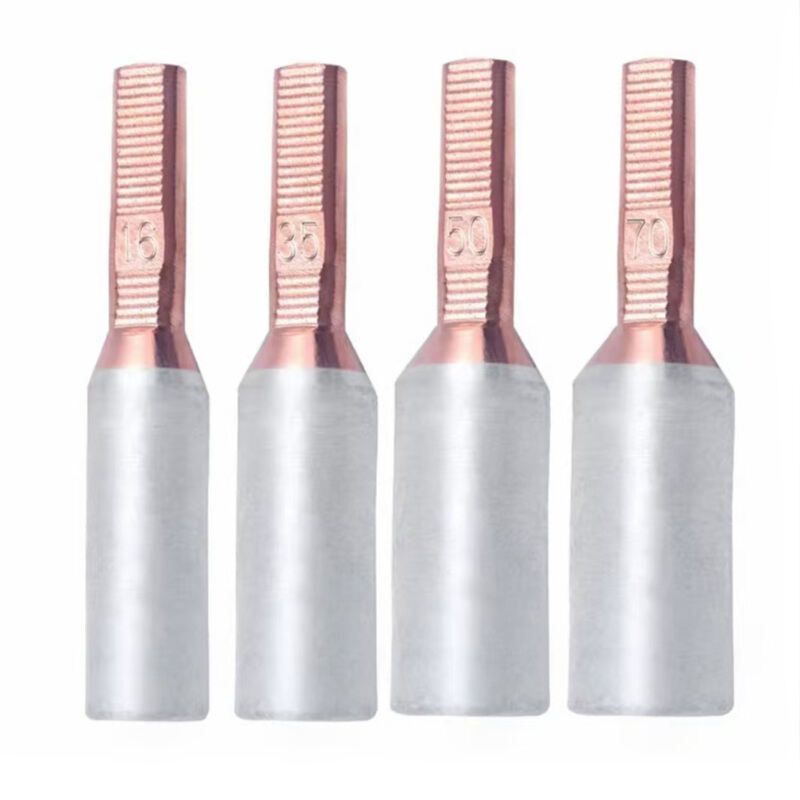

GTLA-001-9 Pin-Type Terminal Block (Meter-Specific)

GTLA-001-9

Product Features

1. High-Quality Materials

Made of oxygen-free copper and high-purity aluminum, combining the excellent electrical conductivity of copper with the economic advantages of aluminum. The surface is pickled to resist oxidation.

2. Solid Welding

Usually adopted friction welding technology, with tight copper-aluminum bonding and high weld strength, making it difficult to break and effectively resisting electrochemical corrosion.

3. Diverse Specifications

Available in various specifications such as GTLA-10, GTLA-16, GTLA-25, etc., which can be adapted to electrical cables or wires with a nominal cross-sectional area of 10-70 square millimeters.

4. Ingenious Design

The round-flat pin head and thickened design, with some featuring double-sided threads, not only extend the service life but also better engage with the wiring holes of electric meters for more stable connections.

Product Advantages

1. Excellent Electrical Conductivity

The oxygen-free copper material and advanced craftsmanship result in low resistance of the pin, ensuring high-efficiency current transmission and effectively reducing power loss.

2. Reliable Connection

The firm welding and special design enable it to maintain stable connections during long-term use, with minimal risk of loosening. This reduces issues such as arcing caused by poor contact, ensuring electrical safety.

3. Easy Installation

With a smooth surface (free of burrs), uniform wall thickness, and neat trimming, it is safe for operators to handle during installation, improving work efficiency

Functional Features

1. Electrical Connection

Primarily used to establish reliable electrical connections between electric meters and copper-aluminum wires, ensuring smooth current flow and normal metering of electric meters.

2. System Stability Assurance

Through good connectivity and low-resistance characteristics, it reduces safety hazards such as overheating, ensures the stable operation of the power system, and minimizes the risk of failures caused by wiring issues.

Specifications


Model	Inserted Conductor Cross-sectional Area (m㎡)	ALL SIZE (mm)
		D			d		L		L1		B		H
GTLA-10	10		9.9	5.9		51.6		21		6.7		5.1
GTLA-16	16		10	6.5		47.2		21		6.7		4.8
GTLA-25	25		11	7.4		47.5		21		6.7		4.9
GTLA-35	35		12	8.3		48.5		21		6.7		4.9
GTLA-50	50		14	9.5		50		22		6.7		5.1
GTLA-70	70		13.8	11		52.1		21		6.6		5.3
All measurements provided are manually obtained and may contain slight tolerances. Final dimensions shall be subject to the physical product
