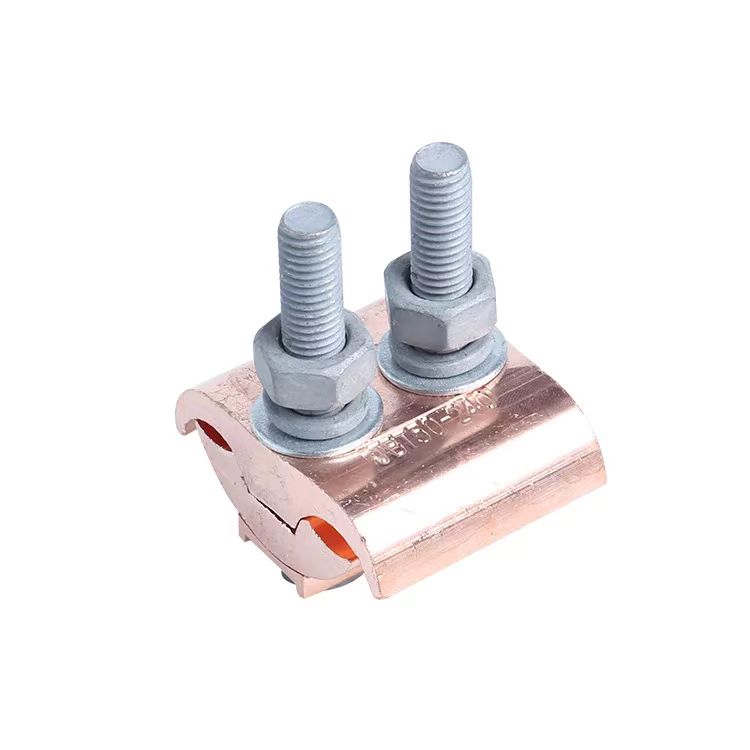

JBT-001-1

Product Features

1. High-Quality Material

Made of oxidation-resistant pure copper, it has excellent electrical conductivity and effectively resists oxidation, extending its service life.

2. Special-Shaped Structure

Features a special-shaped design that adapts to conductors of different diameters, offering strong versatility.

3. Integrated Components

The clamp components are integrated, preventing parts from falling off during installation and facilitating construction operations.

4. Strong Clamping Force

The circular arc surface securely holds the conductor over a large area, minimizing conductor creep and maintaining a stable connection.

Product Advantages

1. Low Contact Resistance

The special-shaped structure design ensures a tight fit and a large contact area between the clamp and the conductor, resulting in low contact resistance. This reduces power loss and heat generation.

2. Reliable Connection

With strong clamping force and low contact resistance, it achieves reliable electrical and mechanical connections between conductors, ensuring stable power transmission.

3. Convenient Installation

The integrated component design, combined with the common use of bolt fastening, simplifies the installation process and improves construction efficiency.

Functional Features

1. Conductor Jointing and Branching

Primarily used for non-tension jointing and branching of copper conductors in overhead power lines, such as jumper connections at non-straight poles and T-junctions at non-load-bearing connections in power systems.

2. Electrical Load Transmission

As a contact fitting, it can join conductors in parallel to effectively transmit electrical loads, ensuring smooth current flow through the connection points and maintaining normal operation of the power system.

3. Insulation Protection Coordination

Can be used in conjunction with insulation covers to provide insulation protection. This prevents external factors from affecting the connection points, improves the safety and reliability of line operation, and reduces the risk of electric shock.

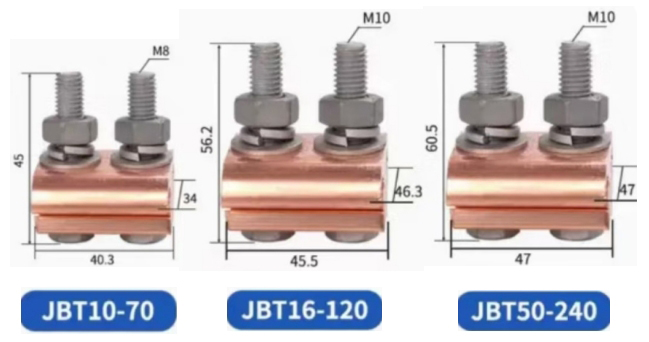

Specifications


Model	Wiring Range	Material
JBTL10-70	10-70 MM2	Copper
JBTL16-120	16-120MM2
JBTL50-240	50-240MM2
All measurements provided are manually obtained and may contain slight tolerances. Final dimensions shall be subject to the physical product.
