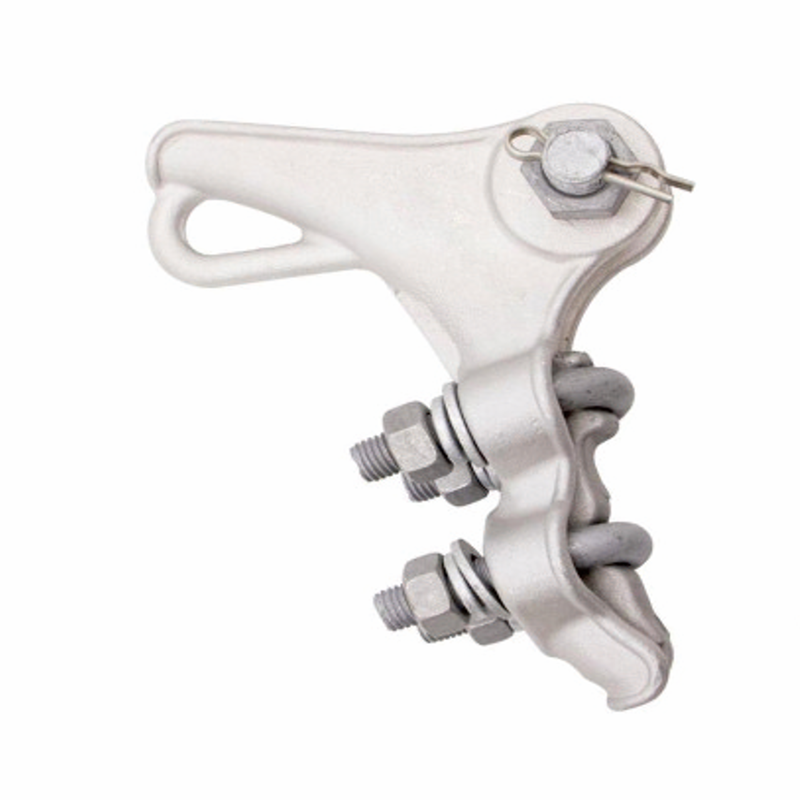

Wedge-Type Insulated Tension Clamp, Insulated Tension Fixture, NXL Guy Wire Tension Bundle Clamp, Wedge-Type Clamp, Power Fittings.Tension clamp, strain clamp, dead-end clamp.

NXL-001-2

Product Features

1. High-Quality Materials

The clamp body is made of non-magnetic high-strength aluminum alloy with a smooth surface and strong oxidation resistance. The wedge core of some models is made of high-strength reinforced nylon, featuring excellent insulation properties.

2. Unique Structure

Adopts a wedge-locking structure for simple and reliable installation. The outlet part is designed with an arc shape to hold the conductor tightly over a large area, preventing conductor creep and providing high grip strength.

3. Insulation Compatibility

Comes with an insulation cover that offers good power-frequency voltage withstand performance, high insulation resistance, adaptability to a certain temperature range, and excellent weather resistance.

Product Advantages

1. Energy Saving and Consumption Reduction

Made of non-magnetic high-strength anti-oxidation aluminum alloy, it has no hysteresis loss or power loss, and is an energy-saving certified product.

2. Convenient Installation

The wedge-locking structure simplifies the installation process, and the integrated design of components ensures no parts are lost during installation.

3. Reliable Performance

Can securely fix the conductor to prevent displacement or detachment caused by environmental factors, reducing faults and maintenance needs due to loose or fallen conductors, and lowering maintenance costs.

Functional Features

1. Conductor Fixing

Suitable for distribution lines of 20kV and below, it can fix overhead insulated aluminum conductors or bare aluminum conductors on insulators of angle or terminal tension poles, achieving the fixation or tensioning of overhead conductors.

2. Insulation Protection

Used in conjunction with an insulation cover, it provides additional insulation protection for the line, enhancing the safety and reliability of the line. It can effectively prevent current leakage and electric shock accidents.

Specifications

Model	Applicable wire models	All size unit are mm		Nominafailure load(KN)
		M	C
NLL-1	5.0~10.0	16	18	40
NLL-2	10.1~14.0	16	18	40
NLL-3	14.1~18.0	16	27	70
NLL-4	18.1~23.0	18	29	90
All measurements provided are manually obtained and may contain slight tolerances. Final dimensions shall be subject to the physical product.
